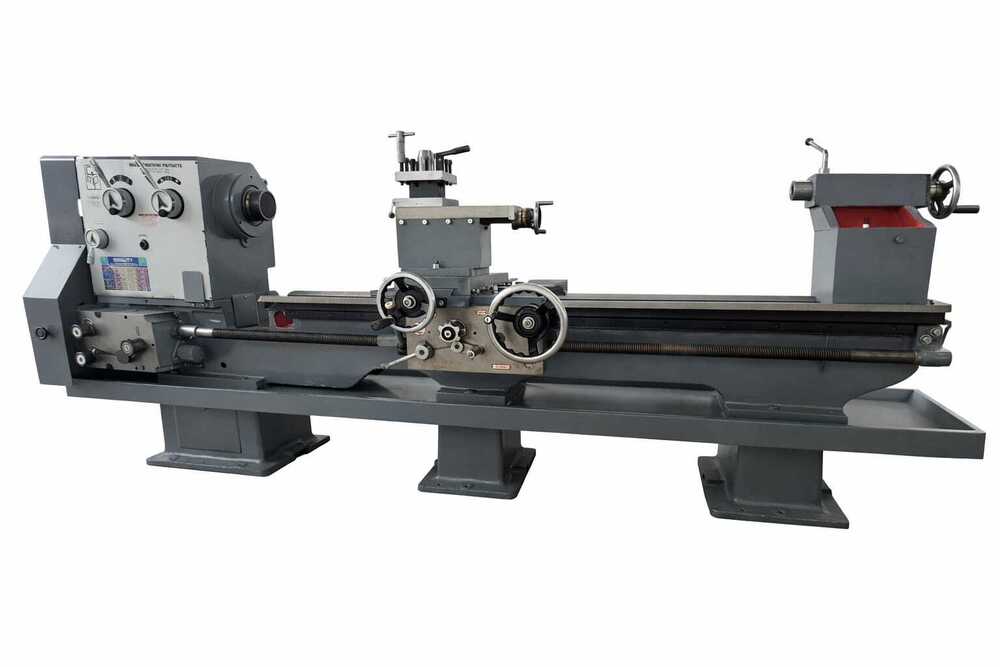

| ALL GEARED EXTRA HEAVY DUTY - MODEL - ALD |
| Hight of Center Available Upto 750 MM |
| MODEL : ALD-1 to ALD -16 |
| [ SPECIFICATIONS ] |
| LENGTH OF BED |
|
2000 TO 12000 MM |
SPINDLE SLEEVE (TAPER BORE) |
MT-3, |
MT-6 |
| WIDTH OF BED |
750 MM |
SPINDLE BORE |
38 MM, |
104/130/155/200 MM,(THREADED) |
| HEIGHT OF CENTER |
600/750 MM |
TAPER BORE IN CENTER SLEEVE |
MT-6 |
| ADMIT BETWEEN CENTER |
200 TO 10100 MM |
RAM TRAVEL |
250MM |
| SWING OVER BED |
1200/1500 MM, |
NO. OF SPINDLE SPEED |
8 |
| SWING OVER CROSS SLIDE |
850/1150 MM |
SPINDLE RANGE (RPM) |
15 TO 200 |
| CROSS SLIDE TRAVEL |
600/750 MM |
LEAD SCREW DIAMETER AND PITCH |
50 /2TPI, |
| LENGTH OGF GAP IN BED |
300 MM |
METRIC THREADS & RANGE |
(1 TO 6 MM PITCH) 13 |
| SWING OVER GAP |
1700/2000 MM |
INCH THREADS & RANGE |
(2 TO 24 TPI) 19 |
| COMPOUND SLIDE TRAVEL |
200 MM |
MOTOR (1440 RPM/440V/AC-3 PHASE) |
10.H.P. TO 25 H.P |
| Standard Accessories |
| Chuck Plate, Change Gear Set, Tool Post Key, Switch Stand, Thread Dial Indicator, Spindle Sleeve, Dead Centre,[2] |
| Electric Motor with R/F. Switch and V-Belt, Full Norton gearbox,Quality Plan, GA Drawings, Test Chart, |
| Machine Accuracy as Per Indian Standard 1971 Part 2 |
| Optional Accessories |
Independent Dog Chuck & True Chuck with Flange & Fittings, Face Plate, Steady Rest and Follow rest,
|
| External Taper Turning Attachment, Tool Post Grinder, Key Way Attachment, Live Center, Set of High Speed, |
| Carbide Cutting, Turning, Boring, Parting and Screw Cutting Tools, Coolant Pump with Tank and Fitting, |
Machine Lamp, Taper Sleeves for Drill Tailstock, Complete Wooden Case Packing On All Six Sides,
|
| Only Wooden Palette in Bottom, Forwarding Charges |
