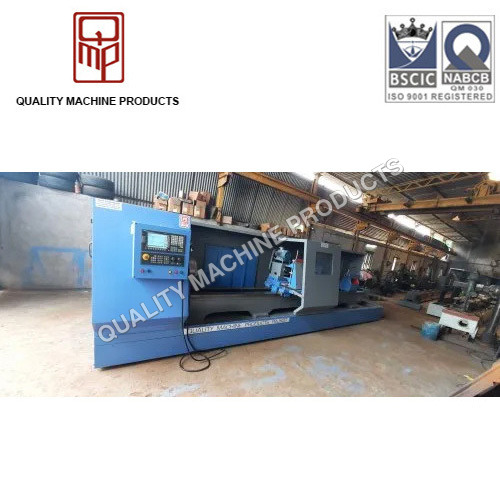

About Industrial CNC Thread Milling Machine
| Parameter |
Specification |
| Capacity Range |
|
| Total Bed Length |
2100 to 12000 mm |
| Admit Between Centers |
200 to 10000 mm |
| Min./Max. Bar Diameter |
20 / 900 mm |
| Width of Bed |
375 to 900 mm |
| Height of Center |
300 to 900 mm |
| Main Spindle (Beg./Bush Type) |
|
| Spindle Bore |
50 to 200 mm |
| Spindle Motor Power (Induction) |
3 / 20 HP |
| Spindle Nose |
MT-5 |
| X-Axis Traverse (Horizontal) |
|
| X-Axis Rapid |
1500 mm/min |
| X-Axis Stroke / Cross Slide Travel |
200 / 10000 mm |
| X-Axis Guideways |
Turcite Coated |
| X-Axis Servo Motor |
6 Nm to 27 Nm |
| Z-Axis Traverse |
|
| Z-Axis Rapid |
1500 mm/min |
| Z-Axis Stroke / Longitudinal Slide Travel |
50 / 900 mm |
| Z-Axis Guideways |
Turcite Coated |
| Z-Axis Servo Motor |
6 Nm to 27 Nm |
| Cutter Head Spindle |
|
| Spindle Type |
ISO-40 / 45 / 50 Taper |
| Bearing Type |
Taper Roller Front & Rear Bearing |
| Bearing Make |
Japan / SKF / FAG / Timken |
| RPM Range |
1000 Variable |
| Spindle Motor Type |
AC Induction |
| Motor Capacity |
3 / 5 / 7.5 / 10 HP |
| General Specifications |
|
| Controller |
Siemens / Fanuc / Mitsubishi |
| Lubrication System |
Automatic |
| Base Type |
Trapezoidal Shimoga Legs Type |
| Accuracy |
0.050 mm |
Standard Accessories
|
| 4 Jaw True Chuck (300 mm) |
| Coolant System |
| Drag Chain |
| Centralized Lubrication System |
| Dog Chuck (400 mm) |
| Steady Rest |
| Face Plate |
| Chuck Plate |
| Spindle Sleeve |
| 2 Nos. Dead Center |
| Front & Rear Cover |
| Tool Kit |
| Manuals |
Optional Equipment
|
| LM Guideways |
| Slant Bedways |
| Chuck (Hydraulic / Pneumatic / Manual) |
| Live Center |
| Spindle Servo Motor |
| Motorized Tailstock Movement |
Additional Feature: Height of Center available up to 450 mm.
Discover the supreme efficiency of our Industrial CNC Thread Milling Machine, designed for opulent performance and extraordinary reliability. Engineered from high-grade stainless steel, this machine boasts automated features and a manual control system, ensuring versatile usage for various industrial applications. Operating at 200 Volts, it delivers high efficiency and durability with a warranty of 12-36 months. Popular among exporters, manufacturers, and suppliers in India, it stands as your ultimate solution for precise and consistent thread milling. Get it nowAdd to Cart for an exceptional machining experience!
Exceptional Performance for Industrial Versatility
This Industrial CNC Thread Milling Machine is tailored for heavy-duty industrial use. With both general and specific thread milling capabilities, it provides unmatched precision for a wide array of applications. Its competitive advantages include supreme efficiency, robust stainless-steel design, and flexible manual or CNC controls. Renowned for durability and accuracy, it is a trusted solution among leading suppliers, exporters, and manufacturers. Experience extraordinary productivity and reliable performance that ensures your operations always stay a step ahead.
Seamless Dispatch and Flexible Payment Options
Our sample policy ensures verified assessment before purchase, giving you peace of mind. Dispatching of goods is efficiently managed via major FOB ports across India, guaranteeing swift transport and safe delivery. For added convenience, we offer a variety of payment terms, accommodating exchange and smooth order processing. Whether for single-unit orders or bulk, we prioritize the streamlined movement of your goods with attentive after-sales support, making us a preferred supplier for industrial machinery needs.
FAQs of Industrial CNC Thread Milling Machine:
Q: How does the automatic feature enhance thread milling operations?
A: The automatic capability simplifies operations by automating complex threading tasks, ensuring high efficiency and consistent results with minimal manual intervention.
Q: What industries commonly use this Industrial CNC Thread Milling Machine?
A: This machine is widely used across automotive, aerospace, and manufacturing industries, where precision thread milling is vital for producing components and machinery parts.
Q: Where is the machine dispatched from and how is transport managed?
A: Dispatches are managed from major FOB ports in India, and goods transport is facilitated through reliable logistics networks to ensure timely and secure delivery to your location.
Q: What is the process for acquiring a sample before placing a bulk order?
A: Buyers can request sample units as per our sample policy, allowing them to verify quality and performance before committing to larger orders, ensuring satisfaction and confidence.
Q: What is the warranty period and what benefits does it include?
A: The machine comes with a 12-36 month warranty, covering manufacturing defects and technical support, thereby securing your investment and maintaining operational continuity.
