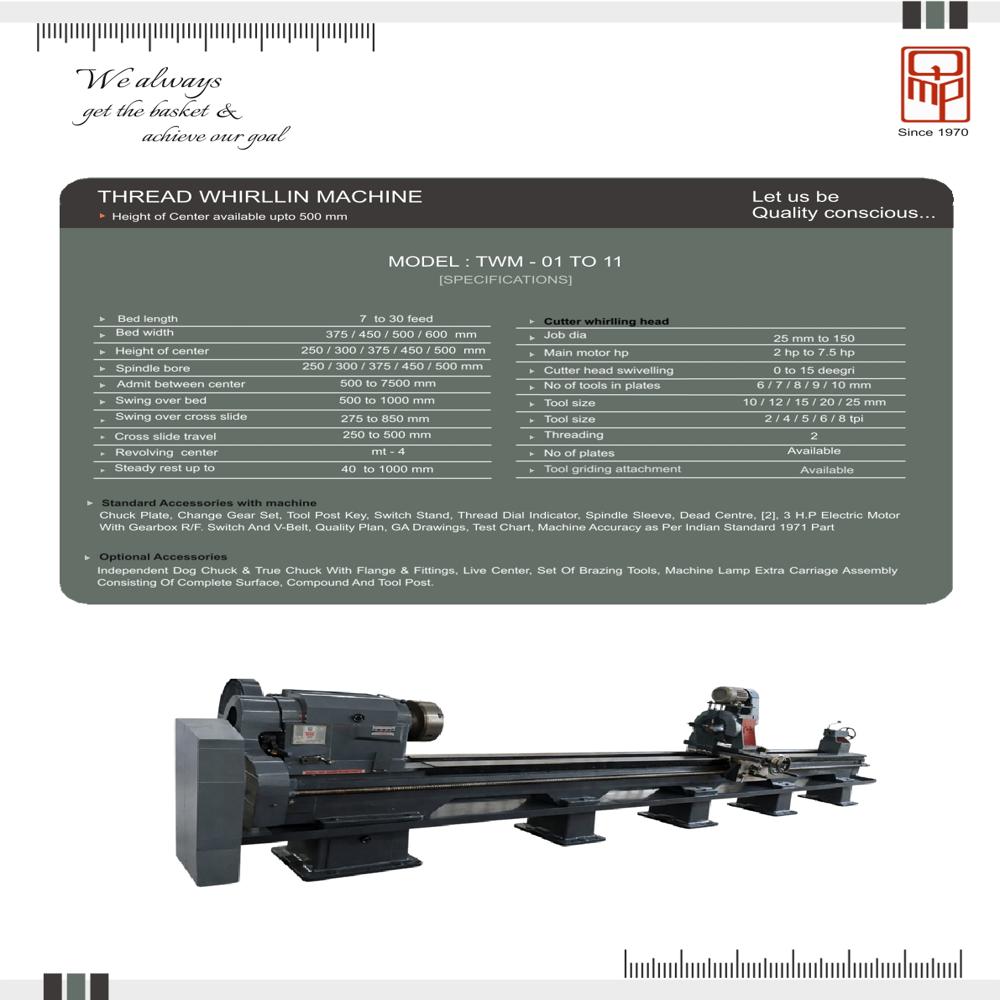

SPECIAL PURPOSE THREAD WHIRLLING MACHINE SPECIFICATIONS:

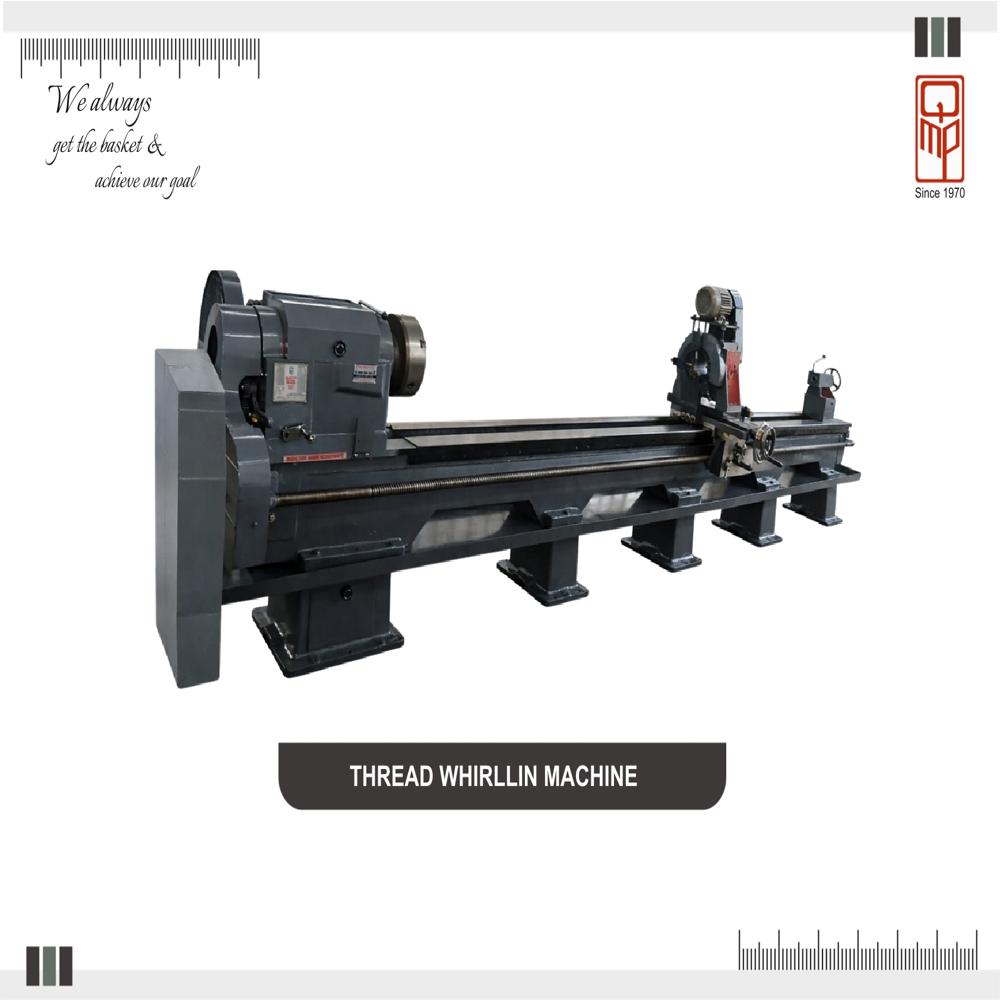

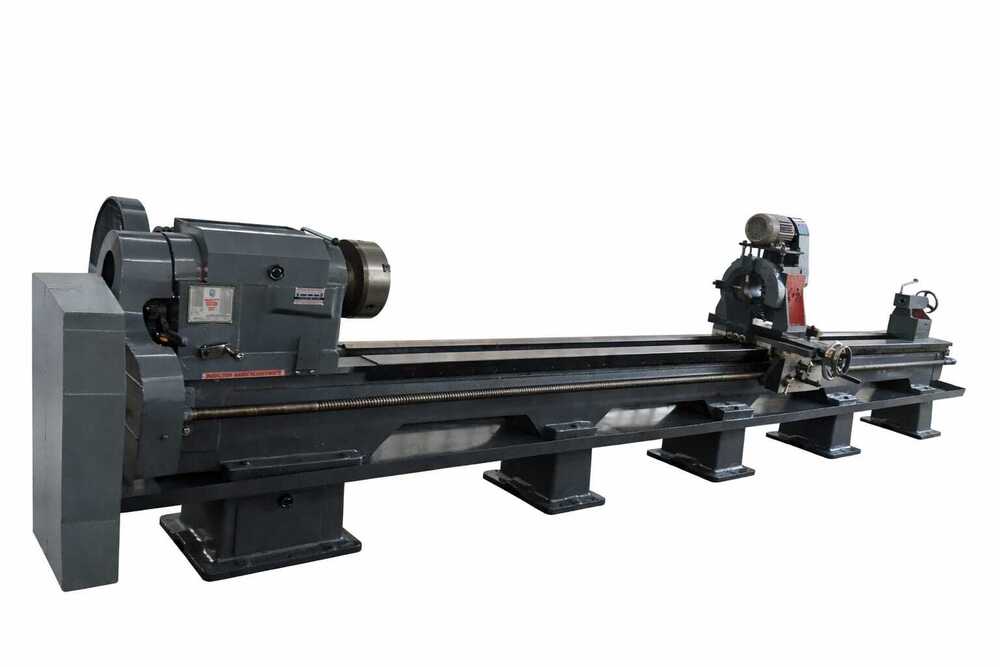

 QMP QUALITY BRAND EXTRA HEAVY DUTY THREAD WHIRLLING MACHINE, COMPLETE WITH STANDARD ACCESSORIES, V BELT DRIVEN, BEARING TYPE, WITH ELECTRICAL MOTOR AND CHUCK.

BED LENGTH:                   7 TO 30 FEET

BED WIDTH   :               375/450/500/600 MM

HEIGHT OF CENTRE:   250/300/375/450/500 MM

SPINDLE BORE:            50 TO 150 MM

ADMIT BETWEEN CENTRE:      500  TO 7500 MM

SWING OVER BED:       500 TO 1000 MM

SWING OVER CROSS SLIDE:  275 TO 850 MM

CROSS SLIDE TRAVEL:   250 TO 500 MM

REVOLVING CENTER  :   MT-4

  STEADY REST UP TO   :    40 TO 100 MM

COOLANT PUMP WITH TANK AND FITTING:   AVAILABLE

3 H. PELECTRIC MOTOR WITH GEARBOX R/F. SWITCH AND V-BELT :  AVAILABLE

TOOL GRINDING ATTACHMENT:  AVAILABLE

CUTTER WHIRLLING HEAD

JOB DIA:          25 MM TO 150

MAIN MOTOR HP :       2 HP TO 7.5 HP

CUTTER HEAD SWIVELLING:- 0 TO 15 DEEGRI

NO OF TOOLS IN PLATES:-        6/7/8/9/10 MM

TOOL SIZE:-   10/12/15/20/25 MM

THREADING:-                2/4/5/6/8 TPI

NO OF PLATES:-           2  AVAILABLE WITH MACHINE

Standard Accessories with Machine:

1) Chuck Plate, 2) Change Gear Set, 3) Tool Post Key, 4) Switch Stand, 5) Thread Dial Indicator, 6) Spindle Sleeve,

7) Dead Centre, [2] 8) Quality Plan, GA Drawings, Test Chart, 9) Machine Accuracy as Per Indian Standard 1971 Part 2

Extra Accessories If Required:

1. Independent Dog Chuck With Flange & Fittings

2. Live Center

3. Set Of Brazing Tools

4. Machine Lamp

5. True Chuck With Flange & Fittings

6.Extra Carriage Assembly Consisting Of Complete Surface, Compound And Tool Post.
